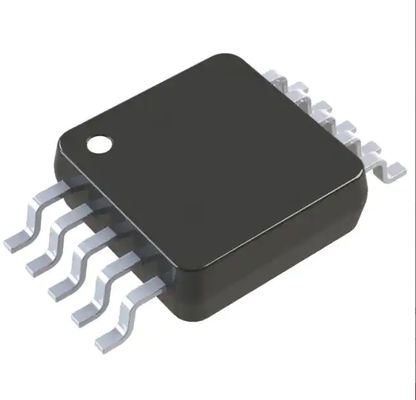

Analog Devices AD5063BRMZ 16 Bit Digital To Analog Converter Ic 1 10-MSOP High Speed Dac Ic Chip

Place of Origin United States
Brand Name Analog Devices Inc.
Certification RoHS
Model Number AD5063BRMZ
Minimum Order Quantity 50 PCS
Price Negotiable
Packaging Details 50 PCS/Tape
Delivery Time 2-3 DAYS
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 1K PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Manufacturer Analog Devices Inc. Category Digital To Analog Converters (DAC)
Product Number AD5063BRMZ Series NanoDAC®
Product Status Active Number Of Bits 16
Number Of D/A Converters 1 Settling Time 4µs (Typ)
Output Type Voltage - Unbuffered Differential Output No
Data Interface SPI, DSP Reference Type External
Voltage - Supply, Analog 2.7V ~ 5.5V Voltage - Supply, Digital 2.7V ~ 5.5V
INL/DNL (LSB) ±0.5, ±0.5 Architecture R-2R
Operating Temperature -40°C ~ 85°C Package / Case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package 10-MSOP
High Light

AD5063BRMZ

,

Analog Devices AD5063BRMZ-1

,

high speed dac ic

Leave a Message
Product Description

Datasheet:AD5063BRMZ

Category Digital to Analog Converters (DAC)
Mfr Analog Devices Inc.
Series nanoDAC
Package Tube
Product Status Active
Number of Bits 16
Number of D/A Converters 1
Settling Time 4µs (Typ)
Output Type Voltage - Unbuffered
Differential Output No
Data Interface SPI, DSP
Reference Type External
Voltage - Supply, Analog 2.7V ~ 5.5V
Voltage - Supply, Digital 2.7V ~ 5.5V
INL/DNL (LSB) ±0.5, ±0.5
Architecture R-2R
Operating Temperature -40°C ~ 85°C
Package / Case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package 10-MSOP
Mounting Type Surface Mount
Base Product Number AD5063

GENERAL DESCRIPTION

The AD5063, a member of the Analog Device Inc., nanoDAC™ family, is a low power, single 16-bit, unbuffered voltage-output DAC that operates from a single 2.7 V to 5 V supply. The device offers a relative accuracy specification of ±1 LSB, and operation is guaranteed monotonic with a ±1 LSB DNL specification. The AD5063 comes with on-board resistors in a 10-lead MSOP, allowing bipolar signals to be generated with an output amplifier. The device uses a versatile 3-wire serial interface that operates at clock rates up to 30 MHz and that is compatible with standard SPI®, QSPI™, MICROWIRE™, and DSP interface standards. The reference for the AD5063 is supplied from an external VREF pin. A reference buffer is also provided on-chip. The device incorporates a power-on reset circuit that ensures the DAC output powers up to midscale and remains there until a valid write to the device takes place. The device contains a power-down feature that reduces the current consumption of the device to typically 300 nA at 5 V and provides softwareselectable output loads while in power-down mode. The device is put into power-down mode via the serial interface. Total unadjusted error for the device is <1 mV.

FEATURES

Single 16-bit DAC, 1 LSB INL Power-on reset to midscale Guaranteed monotonic by design 3 power-down functions Low power serial interface with Schmitt-triggered inputs 10-lead MSOP, low power Fast settling time of 1 µs maximum (AD5063-1 model) 2.7 V to 5.5 V power supply Low glitch on power-up Unbuffered voltage capable of driving 60 kΩ load SYNC interrupt facility

Data Picture:
Analog Devices AD5063BRMZ 16 Bit Digital To Analog Converter Ic 1 10-MSOP High Speed Dac Ic Chip 0
