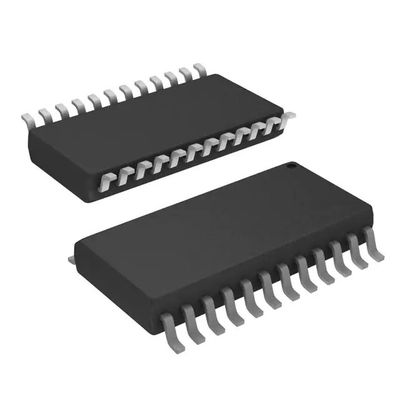

L6206D013TR Stepper Motor Controller Chip Half Bridge 4 Driver DC Motors Voltage Regulators BCDMOS 24-SO
| Place of Origin | Italy |
|---|---|
| Brand Name | ST |
| Certification | RoHS |
| Model Number | L6206D013TR |
| Minimum Order Quantity | 1000 PCS |
| Price | Negotiable |
| Packaging Details | 1000 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 6K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Bootstrap Circuit | Category | Full Half-Bridge Drivers |
|---|---|---|---|
| Mfr | STMicroelectronics | Output Configuration | Half Bridge |
| Applications | DC Motors, Stepper Motors, Voltage Regulators | Interface | Logic |
| Load Type | Inductive | Technology | BCDMOS |
| Rds On (Typ) | 300mOhm | Current - Output / Channel | 2.8A |
| Current - Peak Output | 5.6A | Voltage - Supply | 8V ~ 52V |
| Voltage - Load | 8V ~ 52V | Operating Temperature | -25°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SO | ||
| High Light | L6206D013TR,stepper motor controller chip,stepper driver chip |
||
Product Description
L6206D013TR Half Bridge (4) Driver DC Motors, Stepper Motors, Voltage Regulators BCDMOS 24-SO
Features:
●Operating supply voltage from 8 to 52 V
●5.6 A output peak current (2.8 A DC)
●Operating frequency up to 100 KHz
●Programmable high-side overcurrent detection and protection
●Diagnostic output
●Paralleled operation
●Cross conduction protection
Description:
The L6206 device is a DMOS dual full bridge designed for motor control applications, realized in BCD technology,
which combines isolated DMOS power transistors with CMOS and bipolar circuits on the same chip. Available in the
PowerSO36 and SO24 (20 + 2 + 2) packages, the L6206 device features thermal shutdown and a non-dissipative
overcurrent detection on the highside power MOSFETs plus a diagnostic output that can be easily used to implement
the overcurrent protection.
Quick Detail:
|
Manufacturer
|
STMicroelectronics
|
|
Manufacturer Product Number
|
L6206D013TR
|
|
Description
|
IC HALF BRIDGE DRIVER 2.8A 24SO
|
|
Detailed Description
|
Half Bridge (4) Driver DC Motors, Stepper Motors, Voltage Regulators BCDMOS 24-SO
|
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
Full Half-Bridge Drivers
|
|
Mfr
|
STMicroelectronics
|
|
Product Status
|
Active
|
|
Output Configuration
|
Half Bridge (4)
|
|
Applications
|
DC Motors, Stepper Motors, Voltage Regulators
|
|
Interface
|
Logic
|
|
Load Type
|
Inductive
|
|
Technology
|
BCDMOS
|
|
Rds On (Typ)
|
300mOhm
|
|
Current - Output / Channel
|
2.8A
|
|
Current - Peak Output
|
5.6A
|
|
Voltage - Supply
|
8V ~ 52V
|
|
Voltage - Load
|
8V ~ 52V
|
|
Operating Temperature
|
-25°C ~ 125°C (TJ)
|
|
Features
|
Bootstrap Circuit
|
|
Fault Protection
|
Current Limiting, Over Temperature, UVLO
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
24-SOIC (0.295", 7.50mm Width)
|
|
Supplier Device Package
|
24-SO
|
|
Base Product Number
|
L6206
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names |
497-3999-1
|
|
497-3999-2
|
|
|
497-3999-2-NDR
|
|
|
497-3999-1-NDR
|
|
|
497-3999-6
|
|
| Standard Package | 1000 |
