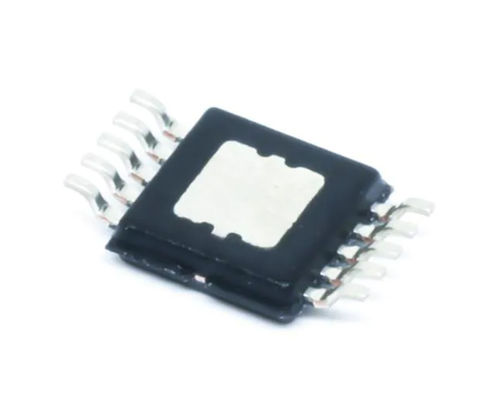

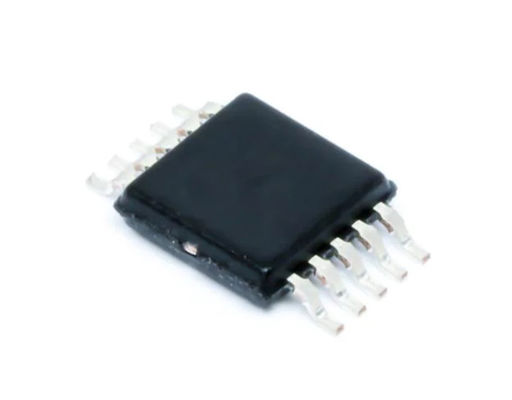

XTR111AIDGQR Mouser Texas Instruments Sensor Interface Ic PREC VOLT-CURR CONV/TX 10MSOP
| Place of Origin | America |
|---|---|
| Brand Name | TI |
| Certification | RoHS |
| Model Number | XTR111AIDGQR |
| Minimum Order Quantity | 2500 PCS |
| Price | Negotiable |
| Packaging Details | 2500 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 6K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Manufacturer | Texas Instruments | Category | Sensor Interface |
|---|---|---|---|
| Type | Current Transmitter | Input Type | Voltage |
| Output Type | Voltage | Current - Supply | 550 µA |
| Operating Temperature | -55°C ~ 125°C | Mounting Type | Surface Mount |
| Input Voltage | 0 V To 12 V | Operating Supply Voltage | 8 V To 40 V |
| Output Current | 25 MA | ||
| High Light | XTR111AIDGQR Mouser Texas Instruments 10MSOP,XTR111AIDGQR 10MSOP Mouser Texas Instruments,XTR111AIDGQR 10MSOP Mouser Texas |
||
Product Description
IC PREC VOLT-CURR CONV/TX 10MSOP
Features:
●EASY-TO-DESIGN INPUT/OUTPUT RANGES:0mA–20mA, 4mA–20mA, 5mA–25mA AND VOLTAGE OUTPUTS
●NONLINEARITY: 0.002%
●LOW OFFSET DRIFT: 1μV/°C
●ACCURACY: 0.015%
●SINGLE-SUPPLY OPERATION
●WIDE SUPPLY RANGE: 7V to 44V
●OUTPUT ERROR FLAG (EF)
●OUTPUT DISABLE (OD)
●ADJUSTABLE VOLTAGE REGULATOR:3V to 15V
Description:
The XTR111 is a precision voltage-to-current converter designed for the standard 0mA–20mA or 4mA–20mA
analog signals, and can source up to36mA. The ratio between input voltage and output current is set by the
single resistor RSET. The circuit can also be modified for voltage output. An external P-MOSFET transistor ensures high
output resistance and a broad compliance voltage range that extends from 2V below the supply voltage, VVSP, to voltages
well below GND. The adjustable 3V to 15V sub-regulator output provides the supply voltage for additional circuitry. The XTR111
is available in MSOP and DFN surface-mount packages.
Quick Detail:
|
Manufacturer
|
Texas Instruments
|
|
Manufacturer Product Number
|
XTR111AIDGQR
|
|
Description
|
IC PREC VOLT-CURR CONV/TX 10MSOP
|
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
Sensor and Detector Interfaces
|
|
Mfr
|
Texas Instruments
|
|
Product Status
|
Active
|
|
Digi-Key Programmable
|
Not Verified
|
|
Type
|
Current Transmitter
|
|
Input Type
|
Voltage
|
|
Output Type
|
Voltage
|
|
Current - Supply
|
550 µA
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width)
|
|
Supplier Device Package
|
10-HVSSOP
|
|
Base Product Number
|
XTR111
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names |
-296-39545-1-ND
|
|
-XTR111AIDGQRG4
|
|
|
XTR111AIDGQR-ND
|
|
|
-XTR111AIDGQRG4-NDR
|
|
| Standard Package | 2500 |
