Panasonic ALF1P12 Relay Ic Module SPST-NO 1 Form A 12VDC Coil
| Place of Origin | Japan |
|---|---|
| Brand Name | PANASONIC |
| Certification | RoHS |
| Model Number | ALF1P12 |
| Minimum Order Quantity | 50 PCS |
| Price | Negotiable |
| Packaging Details | 50 PCS/Box |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 6K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Category | Power Relays, Over 2 Amps | Mfr | Panasonic Electric Works |
|---|---|---|---|
| Series | ALF | Package | Box |
| Coil Voltage | 12VDC | Contact Rating (Current) | 20 A |
| Switching Voltage | 250VAC - Max | Coil Current | 75 MA |
| Must Operate Voltage | 8.4 VDC | Must Release Voltage | 1.2 VDC |
| Operating Temperature | -40°C ~ 60°C | Contact Material | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose | ||
| High Light | alf1p12 relay,alf1p12 panasonic,relay ic module |
||
Product Description
ALF1P12 General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Quick Detail:
|
Manufacturer
|
Panasonic Electric Works
|
|
Manufacturer Product Number
|
ALF1P12
|
|
Description
|
RELAY GEN PURPOSE SPST 20A 12V
|
|
Detailed Description
|
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
|
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
Power Relays, Over 2 Amps
|
|
Mfr
|
Panasonic Electric Works
|
|
Series
|
ALF
|
|
Package
|
Box
|
|
Product Status
|
Active
|
|
Mounting Type
|
Through Hole
|
|
Coil Voltage
|
12VDC
|
|
Contact Form
|
SPST-NO (1 Form A)
|
|
Contact Rating (Current)
|
20 A
|
|
Switching Voltage
|
250VAC - Max
|
|
Coil Current
|
75 mA
|
|
Coil Type
|
Non Latching
|
|
Termination Style
|
PC Pin
|
|
Must Operate Voltage
|
8.4 VDC
|
|
Must Release Voltage
|
1.2 VDC
|
|
Operate Time
|
20 ms
|
|
Release Time
|
15 ms
|
|
Operating Temperature
|
-40°C ~ 60°C
|
|
Contact Material
|
Silver Tin Oxide (AgSnO)
|
|
Relay Type
|
General Purpose
|
|
Coil Resistance
|
160 Ohms
|
|
Base Product Number
|
ALF1P1
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names |
255-2099-5
|
|
ALF1P12-ND
|
|
| Standard Package | 50 |

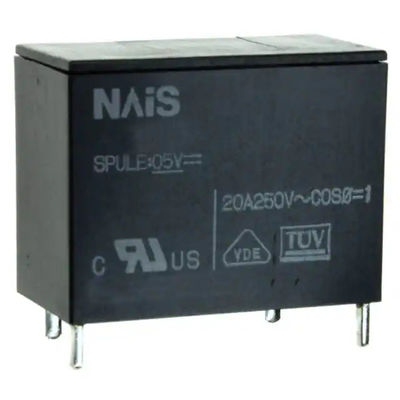

Data Picture:
