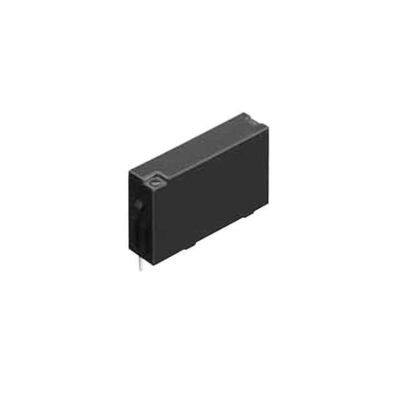

APAN3105 Power Relay IC Chip General Purpose Relay SPST-NO 1 Form A 5VDC Coil Through Hole
| Place of Origin | JAPAN |
|---|---|
| Brand Name | PANASONIC |
| Certification | RoHS |
| Model Number | APAN3105 |
| Minimum Order Quantity | 25 PCS |
| Price | Negotiable |
| Packaging Details | 25 PCS/Tube |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 5K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Number | APAN3105 | Category | Power Relays, Over 2 Amps |
|---|---|---|---|
| Manufacturer | Panasonic | Series | PA-N |
| Package | Tube | Coil Voltage | 5 VDC |
| Relay Contact Form | 1 Form A (SPST-NO) | Switching Voltage | 250 VAC, 110 VDC |
| Coil Type | Non-Latching | Coil Current | 22 MA |
| Contact Rating (Current) | 5 A | Coil Resistance | 227 Ohms |
| Operating Temperature | -40℃~90℃ | Operate Time | 10 Ms |
| Contact Material | Silver Nickel (AgNi), Gold (Au) | Relay Type | General Purpose |
| High Light | APAN3105,Power Relay IC Chip,Relay IC Chip 5VDC |
||
Product Description
General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Features:
1. High density mounting
5mm(W) × 20mm(L) × 12.5mm(H)
.197inch(W) × .787inch(L) ×.492inch(H)
2. Low operating power
Nominal operating power: 110mW
3. Complies with IEC61010 reinforced
insulation standards
4. Long Insulation distance
• Clearance: 5.29mm .208inch
Creepage distance: 5.35mm .211inch
(Between contact and coil)
• 3000 V breakdown voltage and
6000V surge breakdown voltage
5. Complies with Standard for
Hazardous Location (ANSI/ISA12.12.01)
Description:
PA-N Relays
Panasonic PA-N Relays are ideal for Programmable Logic Controllers (PLCs) and interfaces.
These 1 Form A, 5A slim relays comply with the European PLC safety standard IEC61010 for
reinforced insulation. This series achieves a high breakdown voltage of 3000V and offers shock
resistance and low power consumption. Applications for Panasonic PA-N Relays include industrial
and office equipment, measuring devices, test equipment, and more.
Quick Detail:
|
Manufacturer
|
Panasonic Electric Works
|
|
Manufacturer Product Number
|
APAN3105
|
|
Description
|
RELAY GEN PURPOSE SPST 5A 5V
|
|
Detailed Description
|
General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
|
Product Attributes:
|
TYPE
|
DESCRIPTION
|
| Category |
Power Relays, Over 2 Amps
|
|
Mfr
|
Panasonic Electric Works
|
|
Series
|
PA-N
|
|
Package
|
Tube
|
|
Product Status
|
Active
|
|
Mounting Type
|
Through Hole
|
|
Coil Voltage
|
5VDC
|
|
Contact Form
|
SPST-NO (1 Form A)
|
|
Contact Rating (Current)
|
5A
|
|
Switching Voltage
|
250VAC, 110VDC - Max
|
|
Coil Current
|
22 mA
|
|
Coil Type
|
Non Latching
|
|
Termination Style
|
PC Pin
|
|
Seal Rating
|
Sealed - Fully
|
|
Must Operate Voltage
|
3.5 VDC
|
|
Must Release Voltage
|
0.25 VDC
|
|
Operate Time
|
10 ms
|
|
Release Time
|
5 ms
|
|
Operating Temperature
|
-40°C ~ 90°C
|
|
Contact Material
|
Silver Nickel (AgNi), Gold (Au)
|
|
Relay Type
|
General Purpose
|
|
Coil Resistance
|
227 Ohms
|
|
Base Product Number
|
APAN31
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names |
255-5324-5
|
|
2266-APAN3105
|
|
| Standard Package | 25 |
